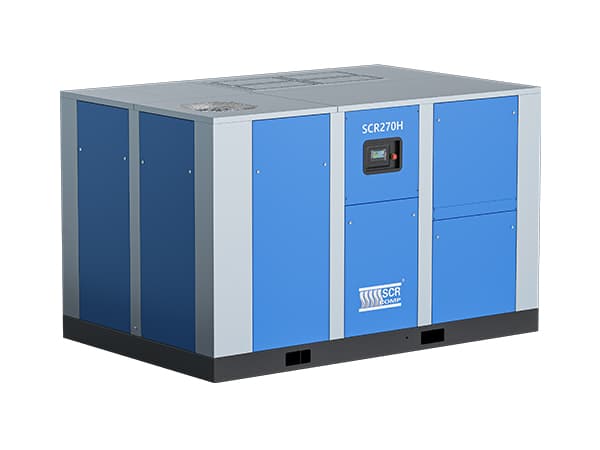

Two-Stage Oil-Injected Screw Compressor
High-power two-stage screw compressor that saves roughly 10% energy versus single-stage machines at full load.
- Power
- 132 – 315 kW (180 – 400 HP)
- Free Air Delivery
- 18.5 – 63.2 m³/min
- Working Pressure
- 7 – 12.5 bar
- Design
- Two-stage, oil-injected
Highlights
- Genuine equipment supplied with warranty
- Professional installation & commissioning
- 24/7 after-sales support nationwide
- Genuine spare parts stocked locally

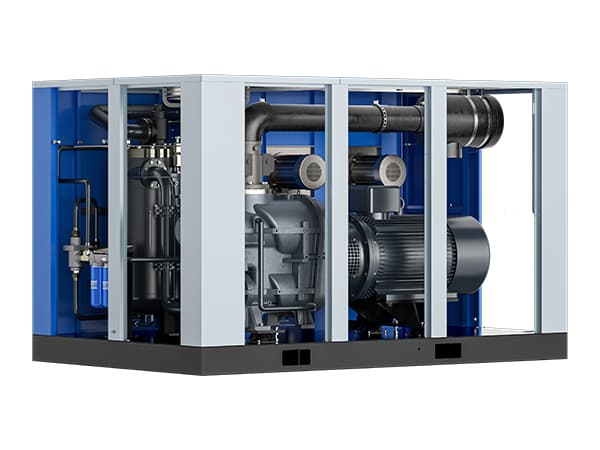

The H series uses two-stage compression to reduce the pressure ratio across each stage, which lowers internal leakage and brings the process closer to isothermal — the result is around 10% lower energy consumption than a comparable single-stage machine at full load. Aimed at large industrial plants with heavy, continuous air demand, the range covers 132 to 315 kW (180–400 HP) at working pressures of 7 to 12.5 bar, with heavy-duty filtration for dusty environments and oil carry-over held below 3 ppm.
