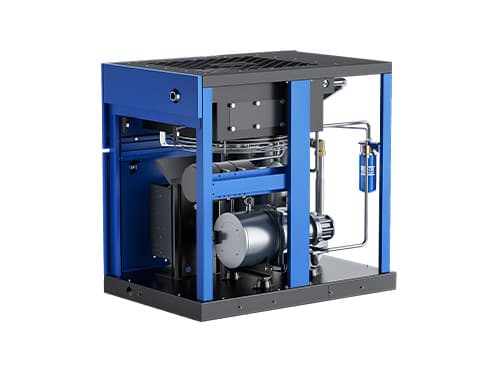

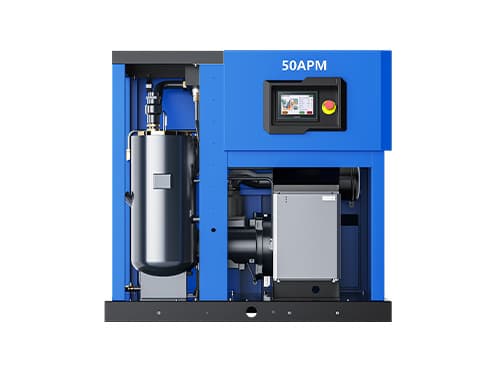

Permanent-Magnet VSD Screw Air Compressor
Direct-drive variable-speed screw compressor with an IE4 permanent-magnet motor for the lowest energy cost per m³ of air.
- Power
- 7.5 – 75 kW (10 – 100 HP)
- Free Air Delivery
- 0.41 – 12.2 m³/min
- Working Pressure
- 7 – 16 bar
- Drive
- PM motor, direct-driven VSD
Highlights
- Genuine equipment supplied with warranty
- Professional installation & commissioning
- 24/7 after-sales support nationwide
- Genuine spare parts stocked locally
The APM series is a permanent-magnet, variable-speed rotary screw compressor built for plants that run compressed air around the clock. The motor and airend share a single shaft — no gears, belts or coupling — so transmission losses are effectively eliminated and there is nothing to re-tension or replace. Variable-speed control continuously matches output to actual demand, holding line pressure within a tight band and cutting the energy wasted by fixed-speed machines that load and unload. Models span 7.5 to 75 kW (10–100 HP) with working pressures from 7 up to 16 bar, making the range suitable for textile, RMG, pharmaceutical, food and general manufacturing plants.
