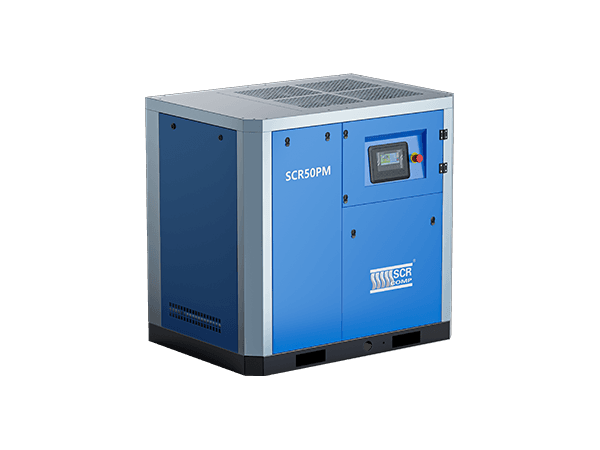

PM VSD Screw Air Compressor (22 – 75 kW)
Direct-drive permanent-magnet variable-speed screw compressor for the popular 30–100 HP range with an above-IE4 motor.
- Power
- 22 – 75 kW (30 – 100 HP)
- Free Air Delivery
- 0.8 – 13.3 m³/min
- Working Pressure
- 7 / 8 / 10 bar
- Drive
- PM motor, direct-driven VSD
Highlights
- Genuine equipment supplied with warranty
- Professional installation & commissioning
- 24/7 after-sales support nationwide
- Genuine spare parts stocked locally

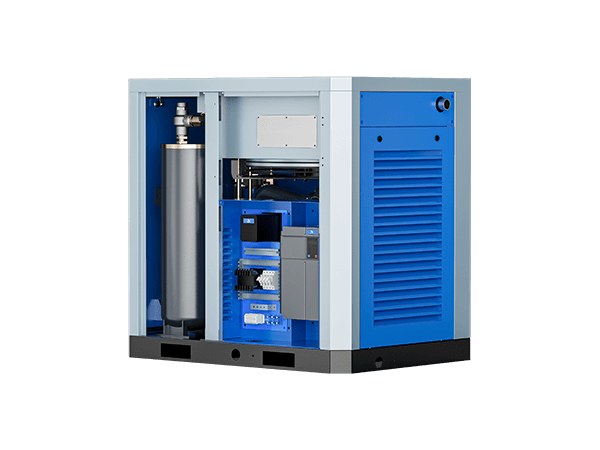

The PM series covers the workhorse 22 to 75 kW (30–100 HP) range with the same permanent-magnet, direct-drive design as the wider APM platform. The PM rotor is mounted directly on the airend shaft — no gears or belts — and the oil-cooled, IP65 motor exceeds IE4 efficiency, while dual frequency conversion holds constant pressure and temperature. A high-efficiency oil separator keeps oil carry-over below 3 ppm. It is a dependable mid-range choice for continuous factory air.
